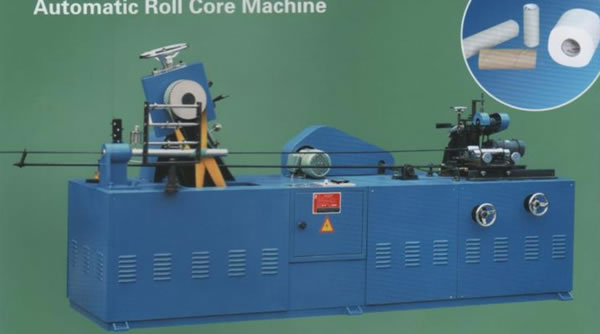

Function & Assemble Parts
1. this equipment adopts the principle of integrated technology between electromagnetic iron and lever, to materialize auto core cutting synchronously without stop machine. it possesses features, such as, high-speed, auto drying, tight rewinding and so on. it is the preferred equipment for producing core for toilet paper, plastic pe film and n.w. .
2. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.

  Main Technical Parameter
1. machine model: px-wsz-jxa (type)
2. core diameter (mm): Φ20~Φ60 (chosen by customers)
3. core layers (mm): 2~6 layers (chosen by customers)
4. speed: 0-20 m/min
5. core length: variable
6. requested power: 3. 5kw (380v, 50hz)
7. overall size (mm): 3500×1000×1600
8. weight of equipment: 1500kg,
