(PX-WSZ-LX1092/1575/1760/2200)

Function & Assemble Parts
1. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
2. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.
3. this machine adopts advanced servo driving, plc system and touching-screen operating system. this machine can materialize successive production (without stop machine), stable running and high production efficiency.

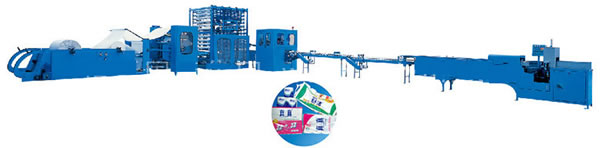

4. this equipment is consisting of rewinding & perforating machine, conveyer, log accumulating system, cutting machine and packaging machine.
5. the collaborating machine—packaging machine, can package 6 rolls, 8 rolls, 10 rolls, 12 rolls, 16 rolls and 20 rolls in one-line or two-line package. there is one sealing machine after packaging to seal the bag, the production speed is 20-30 packages per minute (the speed can be set exactly by the roll quantity)
6. economical machine can reach 200-250meters per minute, medium-rank machine can reach 270-350 meters/per minute, while high-speed equipment can reach 400-650meters (the speed will be influenced by the quality of jumbo roll.)
7. complete production line size：l×w×h =26000×10000×3040mm

  Main Technical Parameter
◎ rewinding machine
jumbo roll specification: width 1500mm-2700mm, 1-2 plies,
14-30 gsm toilet paper or kitchen towel
finished products outer diameter: maximum 150mm, minimum 90mm
perforation distance: 100-150mm (can be adjusted,other size can be ordered)
◎ log accumulating machine
workable roll storage quantity: ordered by customers
storing speed: 25 rolls /min
◎ high-speed roll cutting machine
toilet roll outer diameter: Φ90mm-Φ150mm(standard size:110±5mm)
cutting length: length is changeable, servo control
machine speed: 160cuts/min, 2 rolls/cut
operating speed: 150 cuts/min, 2 rolls/cut
◎ chosen items
packing machine
