- 30% down payment as the deposit.
- the balance 70% paid before shipment after checked by buyer in seller’s factory
- Main machine guarantee 1 year accepted wear parts.
- the machine should be packed by the seller in wooden crates, suitable for long distance ocean transportation and land transportation; the seller should take proper measures corresponding to the features of blowing machines and its assistant machines to protect the machines from moisture and damage caused by shock.
- We’ll send engineers to buyer’s country after receipt of confirmation in written from client informing that the goods arrived in site and civil works completed get ready for installation. The client has to provide the funds for travel to and from buyer’s country, and arrange all local facilities including food, lodging, and transportation during their staying period in buyer’s country. The client also has to pay the engineer salary 100USD/day during the engineer’s journey.
- 4 weeks only, kindly keep this in mind when placing your order.
|
Items |
JG20L-C |
|
Theoretical output |
60-80pcs/hr |
|
Heating capacity |
35kw |
|
Max. bottle volume |
30L(1cavity) |
|
Blowing pressure |
≤3.5Mpa |
|
Motion pressure |
≤1.0Mpa |
|
Max. diameter × height |
Φ280×H450mm |
|
Mould thickness |
300-400mm |
|
Blower dimension |
2200×700×2250mm |
|
Total weight |
1500kg |
|
Heater dimension |
2800×700×1700mm |

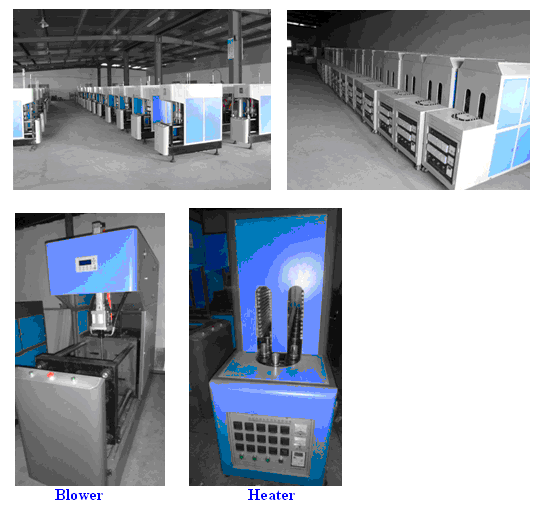

1.1 Machine features:
- Adopt the new type double bend arm and four pull rod-clamping structure (won the patent). Cross direction; middle mould board is move parallel; the distance between two mold bases is adjusted by the chain wheel. Thus, the clamping force is very strong.
- The machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable.
- Adopt the straight slide way, reduce the friction and lengthen the life of the machine.
- Double start working button, which is designed for avoiding the injury.
- Power saving design that can increase your profits.
- The single direction of pre-form placing and bottle picking, which increase the output.
- Segregate type air controlling system, which is designed for avoiding waste pollution.
- The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator.
1.2 Machine components:
- MOHE air cylinder
- CHINT frequency inverter
- PID digital power adjuster
- Germany SIEMENS PLC controller
- PARKER high-pressure blowing valve
- Germany BOSCH two position five ways motion valve
- Japan OMRON safety sensor
