Function & Assemble Parts

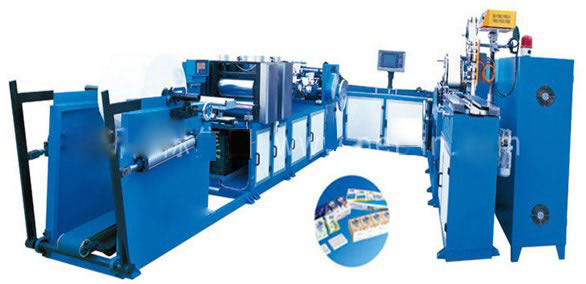

1. this production line adopts full digital centralizing control, such as, advanced servo driving system, plc program, touching screener and so on; it is accurate in positioning, high in automation level as well as nicely and tightly packaging of products. this machine materializes successive auto packaging without stopping machine with stable production and high production efficiency.
2. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.
4. packaging machine can be equipped with label sticker and date printer as per customers’ requirement, while simple bar packaging machine or full-automatic bar packaging machine can be also equipped.
5. 10, 9 or 8 sheets per package can be made as per customers’ requirement.

  Main Technical Parameter
1. products unfolded size：l×w=200×200mm；l×w=210×210mm
2. outer package size：l×w×h=75/105×(52-55)×(22-25) mm
3. jumbo roll specification：outer diameter is less than 1500mm, core inner diameter 76mm, width 420mm
4. production speed：150-200 packages/min
5. machine power：42kw (380v, 50hz)
6. weight of equipment：about 6.0t
7. overall size：6.5×4.5×1.6m
