Function & Assemble Parts
1. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
2. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.

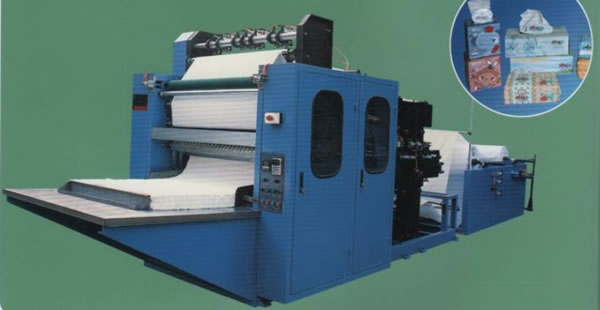

3. this machine adopts folding pattern through vacuum absorption together with manipulator, which possesses auto stop when paper breaks, auto electronic counting and pneumatic staggering function, thus facilitate to separate the designated quantity of tissue for next step if packaging.
4. jumbo roll web-trimming function: on jumbo roll stand. electric sensor is mounted to detect and trace the jumbo roll for web guiding, materializing the mutual homologous.
5. side-rolling embossment：independent pneumatic compress wheel, high rigidity embossment down roller. to produce non-embossment tissue, side-rolling embossment can protect tissue against separating and ensure to produce much more perfect tissue.
6. horizontal jumbo roll stand：pneumatic jumbo roll feeding on wide belt; each roll is controlled by tension adjusting unit and pneumatic lifting device.
7. optional items：advanced plc program control, frequency speed-regulator, electromagnetic speed-regulator, color printing or laminating unit.

  Main Technical Parameter
1. machine model: px-mjz-cs(180-210)
2. finished products size(mm): 180/210×210mm (width is adjustable) (other sizes can be designated)
3. jumbo roll size (mm): width 420/840/1260mm 12~18g/㎡×2 (ply) jumbo roll diameter ≤1200mm
4. machine speed: 1800~3600 draws/min (set as per how many lines)
5. embossment unit: steel to rubber roller, steel to steel embossment, steel to felt roller, steel to paper roller.
6. side rolling embossment:steel to steel, independent adjustment
7. machine power: 9kw/16kw/27kw, (380v, 50hz)
8. overall size: l×w×h =7× (1.2~2.1) ×1.8m
9. weight of machine: 2~4t
