Part 1: Machine list of this line
|
No. |
Name |
Specification |
Quantity |
|
1 |
Powder Feeder |
YLT 300 |
1 set |
|
2 |
Conical twin-screw extruder |
YLT51/105 |
1 set. |
|
3 |
Stainless steel vacuum calibration tank |
3 m |
1 set |
|
4 |
Caterpillar haul-off |
2.2kw |
1 set |
|
5 |
Dustless cutting machine |
1.1 kw |
1 set |
|
6 |
Stacker |
4m |
1 set |
|
|
|
|
Part 2: Machine description and picture
1.Powder Feeder YLT300
|
Rated conveying Capacity |
300kg/h |
|
Hopper capacity |
120kg |
|
Spring diameter |
Ф36mm |
|
Max.Conveying Ability |
450kg/h |
|
Feeding pipe and spring Length |
3-5m |
|
Storage Box capacity |
150kg |
|
Motor power |
1.1kw |
|
Dimension |
Ф650x1162mm |
|
905x655x840mm |
|
Weight |
150kg |
|
|
2. YLT 51/105 Conical twin-screw extruder
|
Screw diameter |
51/105mm |
|
L/D |
51:1 |
|
Efficient length |
1070mm |
|
Motor power |
18.5kw |
|
Rotating speed of screw |
2-32rpm |
|
Heating power |
12.1kw |
|
Extrusion capacity |
50-110kg/h |
|
Center height |
1000mm |
|
Main Extruder speed adjusting way |
Frequency conversion |
|
Feeding extruder speed adjusting way |
Frequency conversion |
|
Barrel temperature adjusting way |
Heating: cast aluminum heater
Cooling: 3 sections cooled by air |
|
Weight |
2300kg |
|
Material of screw and barrel |
38CrMoAlA Azotizing on surface 0.4～0.7mm
Rigidity: above 700 HV |
|
Drive way |
Hard tooth face gearbox |
|
|
3. Stainless steel vacuum calibration tank
|
Vacuum pump |
3kw x 2 |
|
Water pump |
3kw x 2 |
|
Lengthways motor |
0.75kw cycloid and pin gear type |
|
Vacuum quickly change fittings’ quantity |
20pcs. |
|
Cooling water quickly change fittings’ quantity |
20pcs. |
|
Adjusting manner |
Tri-dimension adjusting |
|
Calibrating platform guideway material and manner |
Stainless steel, aluminum guideway |
|
Vacuum rate |
0-0.09Mpa |
|
|
4. Caterpillar haul-off machine
|
Traction speed |
0.5-3 m/min |
|
Power of traction motor |
2.2 kw |
|
Effective length of drive |
1600 mm |
|
Timing method of drive motor |
FUJI frequency conversion |
|
Center height |
1000 mm |
|
Air pressure |
≥0.6 MPa |
|
Dimension |
1800 x 800 x 1500 mm |
|
|
5. Dustless-cutting machine
|
Traction speed |
0.5-3 m/min |
|
Power of traction motor |
2.2 kw |
|
Effective length of drive |
1600 mm |
|
Timing method of drive motor |
FUJI frequency conversion |
|
|
6. Stacker
|
Method |
Pneumatic |
|
Length |
4m |
|
Control method |
Automatic |
|
Air pressure |
≥0.6Mpa |
|
Figure dimension |
4000 x 800 x 1200 mm |
|
|

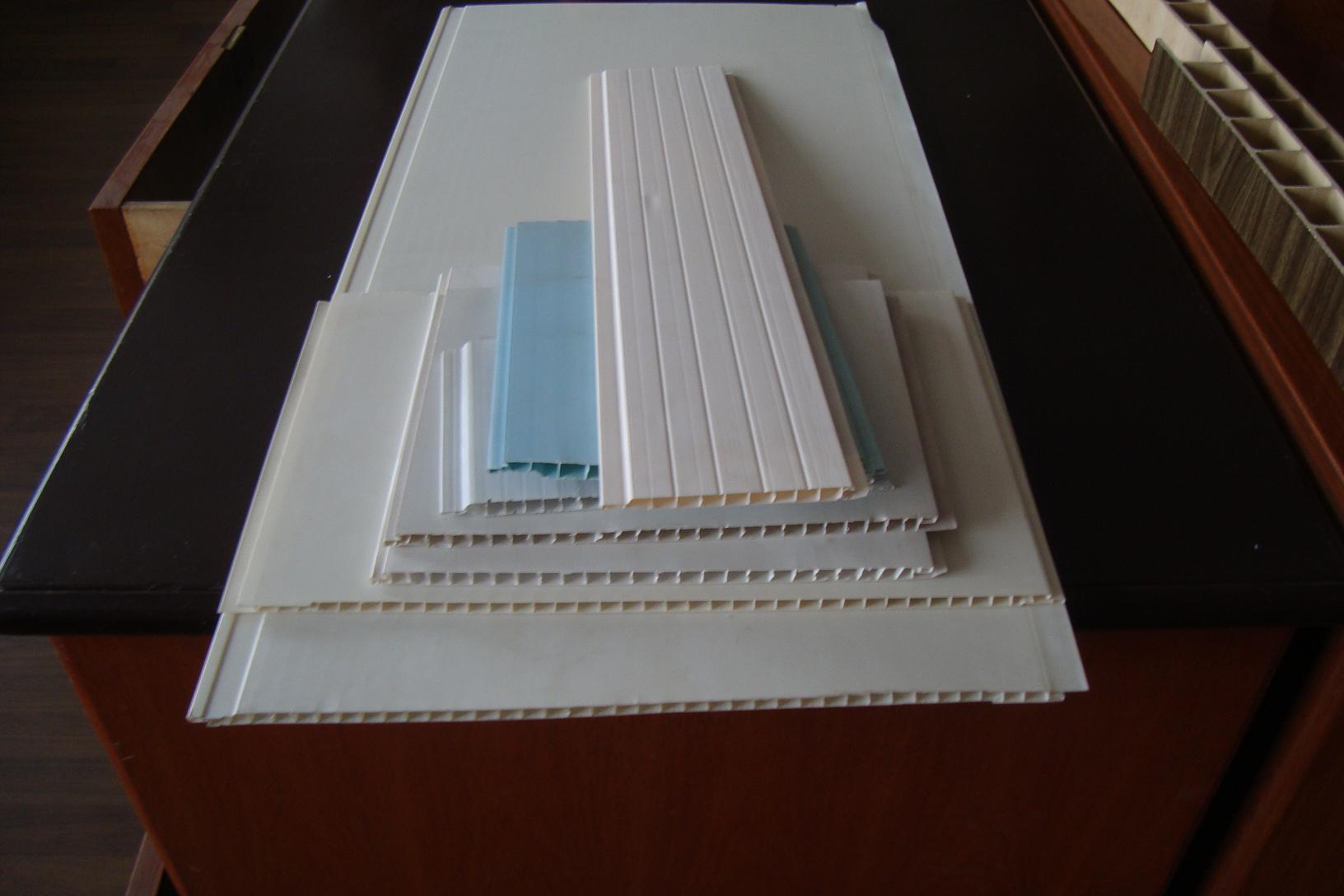

7.Mould
