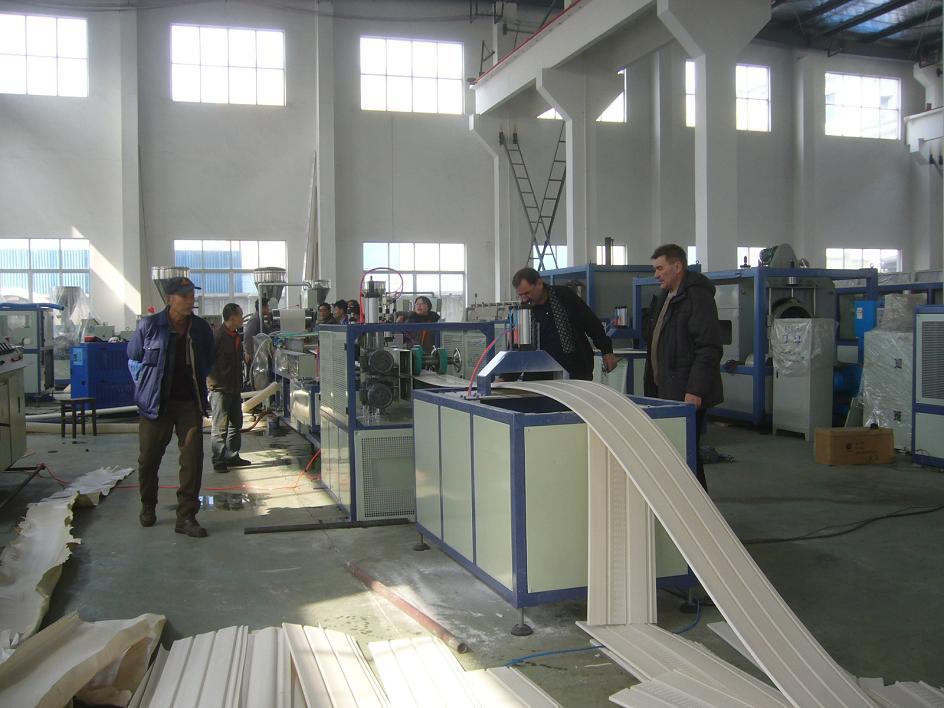

Machine lists
|
NO. |
Name |
QTY |
|
1 |
Powder feeder |
1 |
|
2 |
YLT65/132 double-screw extruder |
1 |
|
3 |
YLT45/90 double-screw extruder |
1 |
|
4 |
|
1 |
|
5 |
Forming platform |
1 |
|
6 |
Punch press machine |
1 |
|
7 |
Haul-off machine |
1 |
|
8 |
Automatic cutter |
1 |
|
9 |
Automatic overturning table |
1 |
|
10 |
Electrical control system |
1 |
Main technical parameter
1.Powder feeder
|
1 |
Material |
Stainless steel |
|
2 |
Motor power |
1.1KW |
|
3 |
Way of feeding |
By spring |
|
Match one magnetic force frame |
|
|
2.YLT 65/132 double-screw extruder
|
1 |
Screw diameter |
65/132 mm |
|
2 |
Rotated speed of barrel |
1-35 r/min |
|
3 |
Effective length of barrel |
1440 mm |
|
4 |
Main motor power |
37 kw |
|
5 |
Heating power of barrel |
24 kw |
|
6 |
Extrusion capacity |
250 kg/h |
|
7 |
Center height |
1000 mm |
|
8 |
Weight |
3000 kg |
|
9 |
Dimension |
4250 x 1500 x 1600 mm |
|
10 |
Extruder speed adjusting method |
Frequency conversion |
|
11 |
Feeding motor speed adjusting method |
Frequency conversion |
|
12 |
Barrel temperature adjusting |
Heating: Cast aluminum heater
Cooling: 3 sections by air |
|
13 |
Material of screw and barrel |
38CrMoAlA Azotizing on surface 0.4～0.7mm
Rigidity: above 700HV |
|
14 |
Drive method |
Hard tooth gearbox |
|
15 |
Vacuum venting system |
1.5kw water-ring vacuum pump |
|
16 |
AC controller |
Schneider |
|
|
3. YLT45/90 double-screw extruder
|
1 |
Screw diameter |
45/90 mm |
|
2 |
Rotated speed of barrel |
1-45 r/min |
|
3 |
Effective length of barrel |
989 mm |
|
4 |
Main motor power |
15 kw |
|
5 |
Heating power of barrel |
11.5 kw |
|
6 |
Extrusion capacity |
30-120 kg/h |
|
7 |
Center height |
1000 mm |
|
8 |
Weight |
2000 kg |
|
9 |
Dimension |
3350 x 1400 x 1500 mm |
|
10 |
Extruder speed adjusting method |
Frequency conversion |
|
11 |
Feeding motor speed adjusting method |
Frequency conversion |
|
12 |
Barrel temperature adjusting |
Heating: Cast aluminum heater
Cooling: 3 sections by air |
|
13 |
Material of screw and barrel |
38CrMoAlA Azotizing on surface 0.4～0.7mm
Rigidity: above 700HV |
|
14 |
Drive method |
Hard tooth gearbox |
|
15 |
Vacuum venting system |
1.5kw water-ring vacuum pump |
|
|
|
1 |
Type |
|
|
2 |
Surfacerough degree |
0.025and mirror surface treating |
|
3 |
Roller’s diameter |
Φ320mm,Φ160mm |
|
4 |
Roller’s length： |
600mm |
|
5 |
Transmitting power |
|
|
6 |
Adjusting way |
Frequency conversion |
|
7 |
Moving way |
Motor-driven, motor power：0.75KW |
|
8 |
Roller’s spacing
adjustment way |
Motor-driven |
|
9 |
Roller temperature
control ways |
Oil constant temperature |
|
|
5. Forming platform
|
1 |
Forming platform length |
4000mm |
|
2 |
Effective length of cooling tank |
3000mm |
|
3 |
Vacuum pump power |
4KW×2 |
|
4 |
Cooling pump power |
3KW |
|
5 |
Power of forward and back motor |
0.75KW |
|
6 |
Place adjusting way |
Manually adjusted up and down or so, the Longitudinal electric limit switch |
|
7 |
Vacuum switch joint |
20pcs |
|
8 |
Cooling water switch joint |
20pcs |
|
9 |
Max. vacuum degree |
0.098Mpa |
|
10 |
Vertical movement distance on the guide rail
|
500-800mm |
|
11 |
Horizontal adjusting distance |
200-220mm |
|
12 |
Up and down adjusting distance |
±100mm |
|
13 |
Air drying device |
Vortex way fan motor，power:0.75KW |
|
14 |
Steam separation tank 1 piece |
Material :stainless steel |
|
15 |
Forming platform guide rail 1set |
Material :aluminum |
|
16 |
Forming mould is made according to product’s specification |
|
|
6.Punch press machine
|
1 |
Way is rolling type |
Bilateral punching on line |
|
2 |
Stamping knife Material |
High quality die steel |
|
3 |
Quantity is two pairs and 2 pieces |
|
4 |
Driving way |
Gear drive |
|
5 |
Punching direction can be adjust，45°, 60°, 90°punching |
|
|
7.Haul-off machine
|
1 |
Type |
|
|
2 |
|
Rubber |
|
3 |
Driving motor |
1.5KW×2 ，frequency way |
|
4 |
Clamp way |
Pneuma lock |
|
5 |
Speed of haul-off |
|
|
|
8.Automatic cutter
|
1 |
Motor power |
1.1KW |
|
2 |
Saw diameter: |
Ф500 |
|
3 |
Saw material |
Alloy saw |
|
4 |
Air pressure |
0.3-0.5Mpa |
|
5 |
Cutting workbench synchronous moving, reset the cylinder return |
|
6 |
Cutting workbench synchronous moving, reset the cylinder return |
|
7 |
Mixed powder collecting chip removal device |
|
|
9. Automatic overturning table
|
1 |
Length |
6m |
|
2 |
Bracket material |
Stainless steel |
|
3 |
Discharging way |
Auto reverse |
|
|
10. Electrical control system
|
1 |
Contactor |
Zhentai |
|
2 |
Air switch |
Zhentai |
|
3 |
Frequency changer |
Sifang |
|
4 |
Temperature-controlled meter |
Omron |
|
5 |
Pneumatic element |
Yadeke |
|
6 |
Button switch |
Schneider |
|
|
11.Mould
|
1 |
Structure |
Clothes rack style |
|
2 |
Heating way of mould |
Cast aluminium heating ring |
|
3 |
Material of mould： |
3Cr17 |
|
4 |
Treating way of inner cavity |
Chromeplate |
|
5 |
Heating of machine nose ： |
4zonesabout 6KW |
|
6 |
Effective width of machine nose： |
400mm |
|
7 |
Adjusting of thickness |
0.8-1.3mm |
|
|
|
