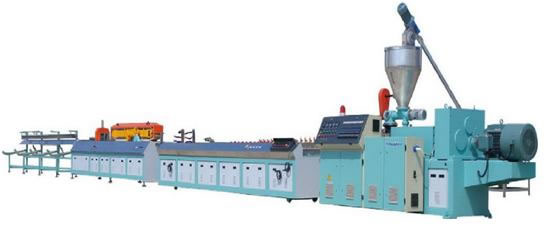

| PVC Wood Plastic Profile Production Line |
|
| Model |
JG-MSX51/105 |
| 1>JG-SJ51/105 Conical Twin-screw Extruder Special for WPC |
| 1.1> Screw |
|
| Material |
38CrMoAl superior alloy steel nitriding treatment |
| Screw dia. |
Ö51/105mm |
| Quantity |
2 pieces |
| Gearing type |
conical gearing |
| Rotary speed |
1-30r/min |
| Rotary direction |
reverse direction outside |
| Depth of nitration |
0.4-0.6mm |
| Hardness of nitriding |
HV740-940 |
| Roughness of surface |
Ra≦0.8μm |
| 1.2> Barrel |
|
| Material |
38CrMoAl superior alloy steel nitriding treatment |
| Depth of nitration |
0.5-0.7mm |
| Hardness of nitriding |
HV940-1100 |
| Roughness of surface |
Ra≦0.8μm |
| Heating method |
cast aluminium heater |
| Heating zones |
4 zones |
| Heating power |
8KW |
| Cooling method |
by fan |
| Cooling power |
3×250W |
| 1.3> Transmission deceleration system |
|
| Main extruder driving motor |
15KW |
| Motor type |
AC motor |
| Motor speed adjusting type |
by transducer |
| Distribution gear box type |
rigid tooth surface gear grinding and bevel wheel combine |
| 1.4> Fix quantity material supplying system |
|
| Material supplying method |
by screw |
| Screw rotary speed |
0-45r/min |
| Motor power |
0.75KW |
| Speed adjust method |
by transducer |
| 1.5> Exhaust system |
|
| Vacuum pump type |
water cycle vacuum pump |
| Motor power |
1.5KW |
| Vacuum degree |
0-0.075MPa |
| 2> MXD180 Wood Plastic Profile Vacuum Forming Unit |
|
| Vacuum fixing length |
4m |
| Water tank material |
stainless steel |
| Adjusting direction |
three dimensions |
| Vacuum pump power |
2 sets × 5.5KW |
| Booster pump power |
1.5KW |
| Draining pump power |
0.75KW |
| Vacuum connectors |
32 pieces |
| Water pipe connectors |
32 pieces |
| Water consumption |
7m3/h |
| 3> MXQ180 Wood Plastic Profile Draw-off Unit |
|
| Draw-off type |
by rubber |
| Rubber type |
draw type |
| Draw-off power |
2 × 1.5KW |
| Draw-off force |
40KN |
| Draw-off speed |
0-5m/min |
| Draw-off roller’s valid length |
1580mm |
| Valid draw-off width |
180mm |
| Working pressure |
0.5-0.7MPa |
| 4> MXG180 Cutting Unit |
|
| Max. cutting profile width |
200mm |
| Cutting type |
alloy saw |
| Saw dia. |
300mm |
| Cutting power |
2.2KW |
| Control method |
automatic measure length |
| 5> MXF180 Automatic Stacker |
|
| Length |
6m |
| Turnover type |
automatic turnover |
| Material |
stainless steel |
| 6>Electrical control |
|
| Temperature controller |
OMRON or RKC |
| Low voltage |
Siemens or Schneider |
| Transducer |
Fuji or LG |
| AC motor |
BEIDE motor (Siemens Standard Motors Ltd.) |
